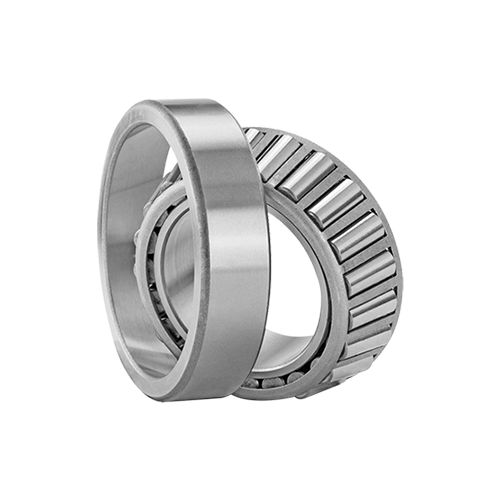

Automotive Bearings (EV Drive, Steering & Auxiliary Systems)
Characteristics: Designed for electric vehicles – electrically insulated (to prevent fluting damage from inverter-induced currents), low-friction greases for extended range, compact cross-sections for e-axle integration, and low noise/vibration (NVH) for cabin comfort.
Advantages:
· Lifetime: EV drive bearings last 2-3× longer than standard deep groove ball bearings (300,000 km vs. 150,000 km) due to ceramic hybrid rolling elements and conductive or insulated coatings that eliminate electrical erosion.
· Speed: Standard bearings limit to 12,000–15,000 rpm in traction motors; EV-specific bearings achieve 25,000–30,000 rpm continuously, enabling smaller, higher-power motors.
· Specifics: EPS bearings offer 50% lower friction torque (down to 0.01 Nm) for better steering feel and energy recovery. Auxiliary bearings (e.g., electric coolant pumps) run maintenance-free for 15,000 hours vs. 5,000 hours for conventional.
· Application/Industry: EV traction motor rotor supports, electric power steering racks, electric compressors for heat pumps, and e-oil pumps.
Technical ceiling:
· Speed factor (DN): 2.0 million (e.g., 30 mm bore × 65,000 rpm).
· Insulation resistance: >500 MΩ at 1000 VDC (alumina or resin coating, 100–300 µm thick).
· Temperature range: -40°C to +150°C continuous (peak 180°C for 30 min).
· Grease life: 10,000 hours at 120°C (low-bleed polyurea or fluorinated oil).
· Vibration velocity: ≤0.3 mm/s (low-noise grade for cabin comfort).
Cautions:
· Standard bearings without insulation will fail by electrical fluting within 1,000-5,000 hours in an EV drive - visible as washboard patterns on raceways.
· Replacing with a non-hybrid EV bearing still risks current passage; full ceramic hybrid (Si₃N₄ balls) is mandatory for >800V systems.
· Standard chassis bearings cannot handle the higher acceleration torque of instant EV torque (0-20,000 rpm in <1 s) - resulting in cage fracture. Use EV-specific cages (PEEK with 30% carbon fiber).
· In EPS, standard bearings’ higher friction triggers torque ripple and steering noise. Fit tolerances must be tighter (js4 instead of k5) to avoid micro-sliding.
· Always ground the motor shaft through a conductive brush when using insulated bearings - otherwise, the insulation forces the current to find another path (e.g., through other bearings).
